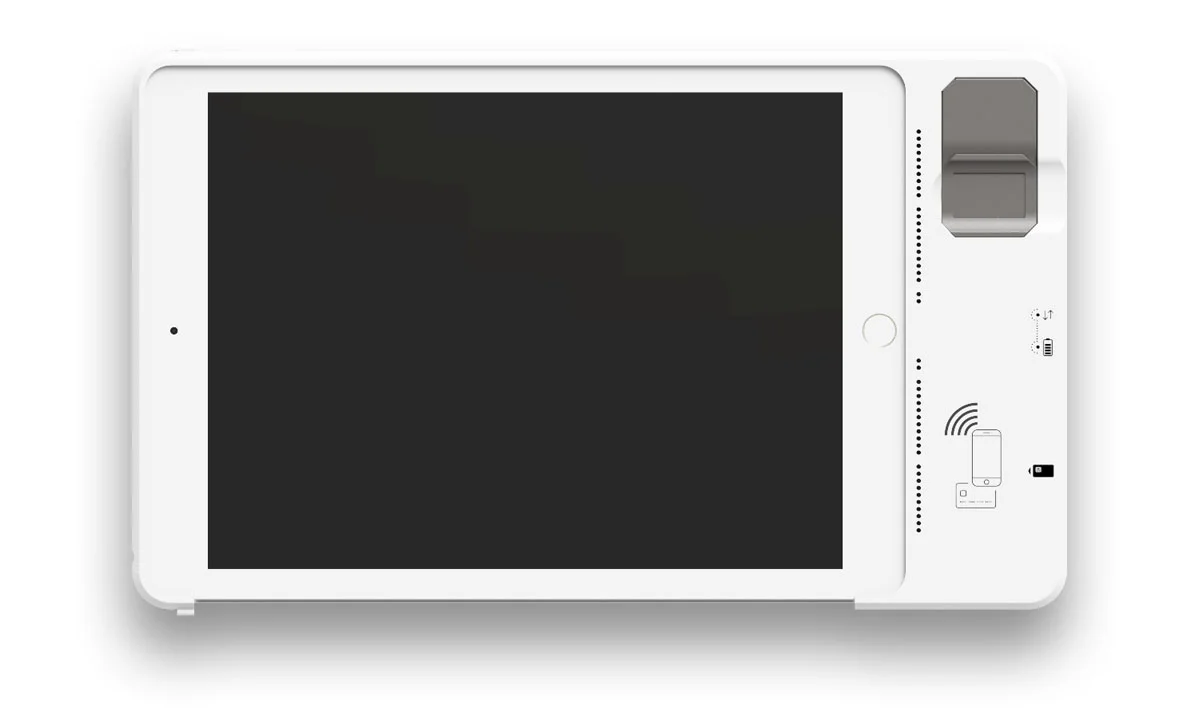

KX 905

Protecting enterprise internal system and modern payment system is quite challenging in mobile environment. KeyXentic Inc. provides a total secure iPad solution with bio-identifi- cation and strong authentication hardware platform to keep your access control in a safer way.

Almighty bio-authentication terminal with smart card reader


・ Multi-modal authentication : Biometric, Public Key, PIN authentication
・ Secure key container

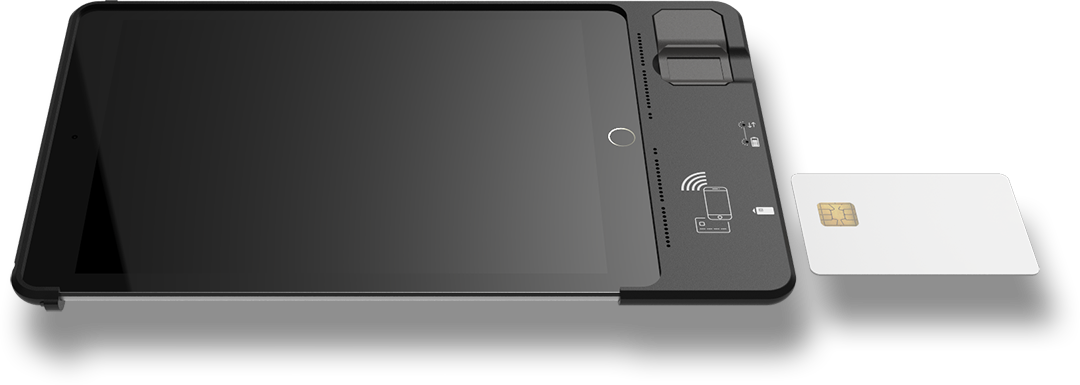

・ Secure iPad POS with contact and contactless smart card interfaces
・ EMV Compliant / PCSC standard smart card Reader with secure access module (SAM)
・ Contactless interfaces for NFC, ISO/IEC 14443 A & B, MIFARE, JIS X 6319-4
・ Hardware cryptographic acceleration (AES256) for data encryption
・ Public key infrastructure(PKI) function and X.509 certificate supported
・ Fingerprint (ISO 19794-2 / Proprietary format) Match-On-Card supported
・ Fingerprint Match-On-Device supported
・ Bitcoin transaction terminal supported


・ Secure Email signing and encryption with S/MIME and PGP protocol
・ File encryption and data protection
・ PDF Security (signing and encryption)
・ Secure access control with identification and authentication
・ Cryptocurrency transaction


・ RSA 1024/2048
・ ECC 192/256/320 (Multiple Named Curves)
・ ECDSA, NIST and Brainpool Curves
・ Wrap / Unwrap
・ SHA-1, SHA-2
・ Hardware Crypto-Accelerator (AES256)


Application Programming Interfaces (APIs)

・iOS SDK (Objective-C)
・Script like APIs for web App
・Proprietary APIs

Supported OS

・iOS 9 or higher

Security,Safety,Environmental compliance

・Built-in Secure Element Hardware : CC (Common Criteria) EAL 5+
・Built-in Secure Element COS (Card Operation System) :FIPS 140-2 Level 3
・CE, FCC Class B, BSMI, RoSH

Supported iPad Models

・iPad Air 2, iPad Pro 9.7”

Physical Specification

・USB 2.0 Micro USB Connector
・Apple Lightning for iPad device
・EMV Compliant / PCSC StandardSmart Card Reader (ISO7816 Smart Card)
・Capacitive Fingerprint Area Sensor with 256*360 pixels, Spatial resolution 508 DPI
・Optical Fingerprint Sensor with256*400 pixels, Spatial resolution 500DPI・Indicator Light : Red & Blue LEDs
・1000 mAh lithium polymer battery



Physical Token Specification

Dimension : 290 x 177.39 x 23.95 mm
